DT-01A挞皮成型机进出型Tart skin forming machine inlet and outlet type
Specifications
- 型号Model: DT-01A 挞皮成型机（进出式） DT-01A tart shell forming machine (in and out)
- 电压 Voltage: 220V
- 功率 Power: 0.25kW
- 机身尺寸 Dimensions: 600*300*1500mm
- 木箱尺寸 Wooden box size: 680*350*1600mm
- 模具成型范围 Mold forming range: 4.5-10cm（可按需求订制）
- 净重 net weight: 70k
- 产量 Yield: 500-1500 个/小时
- 建议配置空压机 Recommended to equip with an air compressor: 2.4KW/65L
DT-01L挞皮成型机加大款手柄Tart skin molding machine with large handle in English
Specifications
- 型号Model: DT-01L（定制加大款） 挞皮成型机（手柄式）DT-01L (customized enlarged model) tart shell forming machine (handle type)
- 电压 Voltage: 220V
- 功率 Power: 0.25kW
- 机身尺寸 Dimensions: 610*270*710mm
- 木箱尺寸 Wooden box size: 720*490*1330mm
- 模具成型范围 Mold forming range: 4.5-10cm/11-30cm（可按需求订制）
- 净重 net weight: 90kg
- 产量 Yield: 500-1100 个/小时
- 建议配置空压机 Recommended to equip with an air compressor: 2.4KW/65L
DT-01挞皮成型机常规款手柄Tart skin forming machine regular handle
Specifications
- 型号Model: DT-01（常规款） DT-01 (regular model)
- 电压 Voltage: 220V
- 功率 Power: 0.25kW
- 机身尺寸 Dimensions: 230*400*630mm
- 木箱尺寸 Wooden box size: 460*340*850mm
- 模具成型范围 Mold forming range: 4.5-10cm（可按需求订制）
- 净重 net weight: 48kg
- 产量 Yield: 500-1100 个/小时
- 建议配置空压机 Recommended to equip with an air compressor: 2.4KW/65L
DT-04A挞皮成型机常规款Tart Shell forming Machine(Standard model)
Specifications
- 型号Model: DT-04A 挞皮成型机（触屏式）DT-04A tart shell forming machine (touch screen)
- 电压 Voltage: 220V
- 功率 Power: 0.25kW
- 机身尺寸 Dimensions: 1020*700*1500mm
- 木箱尺寸 Wooden box size: 730*650*1600mm
- 模具成型范围 Mold forming range: 4.5-10cm（可按需求订制）
- 净重 net weight: 160kg
- 产量 Yield: 2100-2300 个 / 小时
- 建议配置空压机 Recommended to equip with an air compressor: 2.4KW/65L
DT-04FS分馅式挞皮成型机Stuffing Type Tart Shell Forming Machine
Specifications
- 型号Model: DT-04FS挞皮成型一体机（分馅式）tart skin forming all-in-one machine (stuffing type)
- 电压 Voltage: 220V
- 功率 Power: 3.5kW
- 机身尺寸 Dimensions: 1900*1000*1700mm
- 木箱尺寸 Wooden box size: 960*1180*1450/430*750*1680
- 模具成型范围 Mold forming range: 5-10cm（可按需求订制）
- 净重 net weight: 310kg
- 产量 Yield: 1200-1800 个 / 小时
- 建议配置空压机 Recommended to equip with an air compressor: 8KW/180L
DT-04XL吸皮吸杯挞皮成型一体机Integrated Suction Skin&Suction Cup Tare Shell Forming Machine
Specifications
- 型号Model: DT04XL吸皮吸杯成型一体机DT04XL Integrated suction cup and suction pad molding machine
- 电压 Voltage: 220V
- 功率 Power: 2.5kW
- 机身尺寸 Dimensions: 1600*1350*1550mm
- 木箱尺寸 Wooden box size: 1450*1020*1620mm
- 模具成型范围 Mold forming range: 5-10cm（可按需求订制）
- 净重 net weight: 200kg
- 产量 Yield: 1200-1800 个 / 小时
- 建议配置空压机 Recommended to equip with an air compressor: 8KW/180L
DT-S4FS双头分馅挞皮成型机Double-head Stuffing Tart Shell Forming Machine
Specifications
- 型号Model: 双头给馅成型机DT-S4FS Double-head filling and forming machine
- 电压 Voltage: 220V
- 功率 Power: 3.8kW
- 机身尺寸 Dimensions: 1100*2270*1660mm
- 木箱尺寸 Wooden box size: 1240*1040*1550/780*450*180
- 模具成型范围 Mold forming range: 4.5-10cm（可按需求订制）
- 净重 net weight: 360kg
- 产量 Yield: 2100-2300 个 / 小时
- 建议配置空压机 Recommended to equip with an air compressor: 8KW/180L

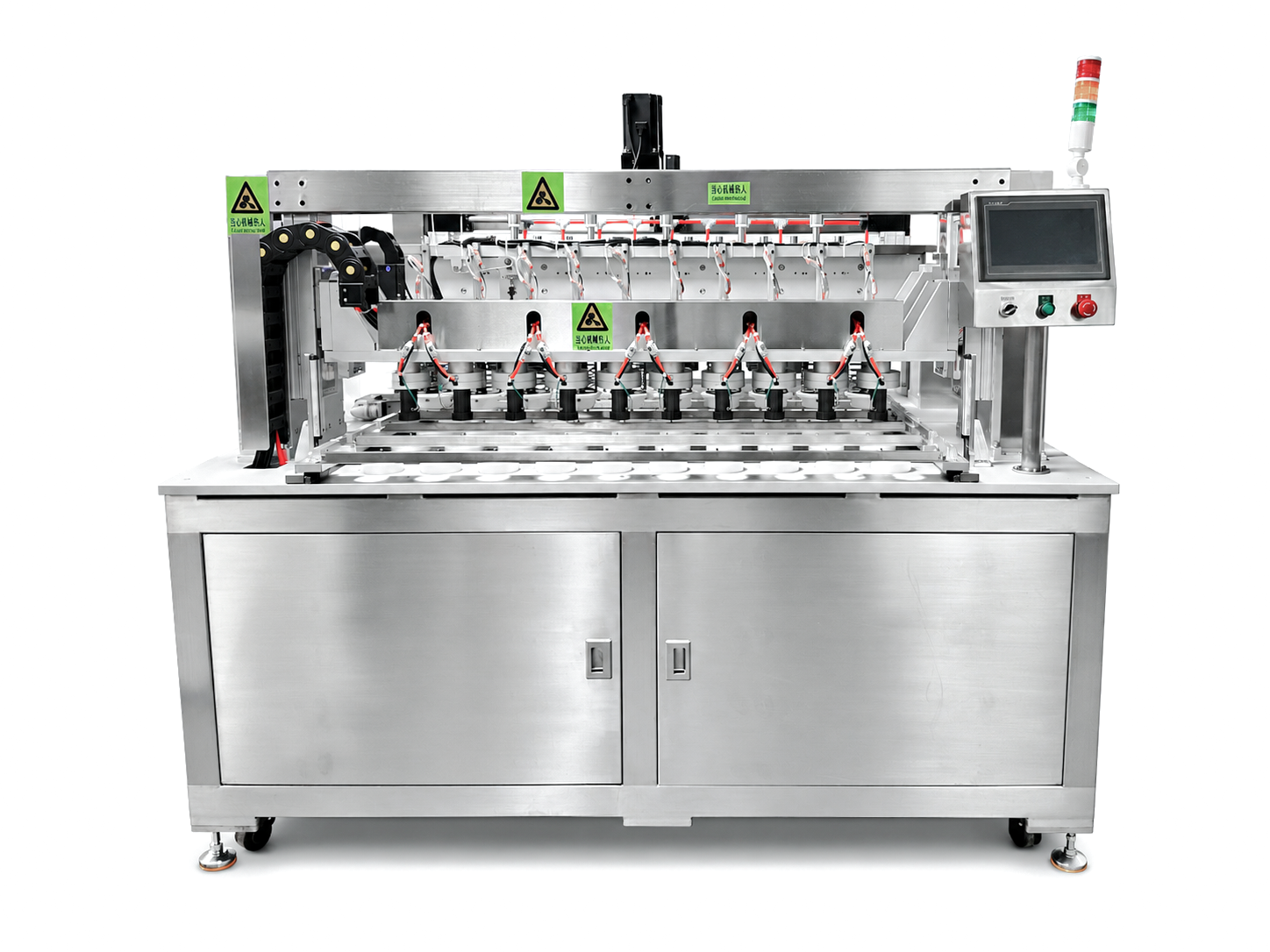

DT-S4QL仿手工全自动挞皮成型机Handmade Imitation Fully Automatic Tart Shell Forming Machine
Specifications
- 型号Model: DT-S4QL仿手工挞皮成型机 DT-S4QL Handmade Imitation Tart Shell Forming Machine
- 电压 Voltage: 220V
- 功率 Power: 2.5-5.5kW
- 机身尺寸 Dimensions: 2450*1420*1600mm
- 木箱尺寸 Wooden box size: 1480*1030*1620mm
- 净重 net weight: 434kg
- 产量 Yield: 1300-1500个 / 小时
- 建议配置空压机 Recommended to equip with an air compressor: 8KW/180L
DT-S4仿手工半自动挞皮成型机Handmade Imitation Semi-automatic Tart Shell Forming Machine
Specifications
- 型号Model: DT-S4仿手工挞皮成型机 DT-S4 Handmade Imitation Tart Shell Forming Machine
- 电压 Voltage: 220V
- 功率 Power: 2.5-5.5kW
- 机身尺寸 Dimensions: 1195*835*15650mm
- 木箱尺寸 Wooden box size: 1120*820*1580mm
- 净重 net weight: 350kg
- 产量 Yield: 1300-1500个 / 小时
- 建议配置空压机 Recommended to equip with an air compressor: 8KW/180L
